Cyclone manual powder coating booth

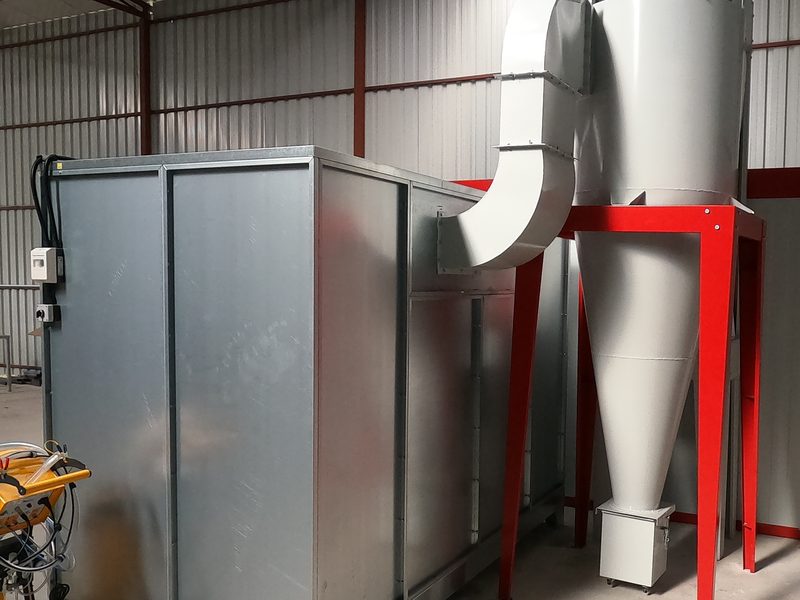

The cyclone manual powder coating booth is a fixed, knock-down steel booth for spraying from both sides. Overspray is drawn through the floor into a cyclone that recovers the powder for reuse; the fine fraction that escapes is held in a felt after-filter. Our standard size is 3,000 x 2,200 x 1,400 mm with 12,000 m³/h of extraction.
| Extraction airflow | 12,000 m³/h |
|---|---|
| Booth size | 3,000 x 2,200 x 1,400 mm |
| Extraction fan | 4 kW |
Technical data
The table shows the standard size. Values marked per project are set from your part and line and appear in the proposal, with the drawing for your size.
Quote for your dimensions
| Length | 3,000 mm |
|---|---|
| Height | 2,200 mm |
| Width | 1,400 mm |
| Filters | 12 cartridges, Ø100 x 1,900 mm |
| Cyclone hopper | 1 |
| Extraction airflow | 12,000 m³/h |
| Extraction fan | 1 x 4 kW |
| Lighting | 2 x 40 W sealed fittings, 2 sets |
| Body | 1.5 mm AISI 430 |
| Base and legs | 2 mm powder-coated sheet |
| Booth air velocity | 0.5 m/s, low pressure |
| Assembly | Knock-down build, bolted assembly |
How we size it
Opening height follows the tallest part plus hanger and 200 mm clearance; length gives the operator reach at both ends; extraction follows the open area at 0.5 m/s. In the standard booth that is 12,000 m³/h from a 4 kW fan and twelve Ø100 x 1,900 mm cartridges. Larger openings scale airflow and cartridge count together.
What it is for
- Spray openings on both sides, fully enclosed interior lighting

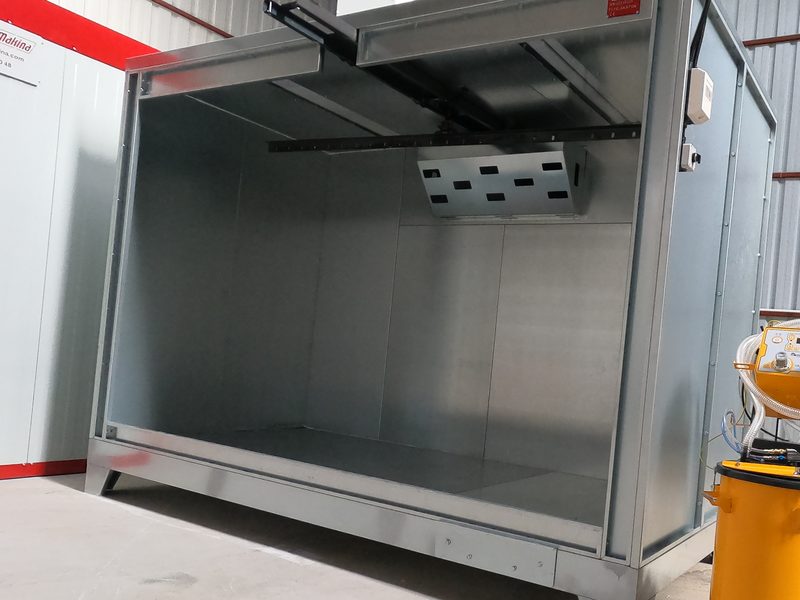

- Floor extraction, recovery in the cyclone
- Filters are air-cleaned at intervals so extraction does not drop
- Knock-down build: bolted, can be dismantled and moved
Options
- Booth body in 1.5 mm AISI 430 stainless steel (standard) or powder-coated steel
- Second cyclone hopper for two-colour work
- Extra sealed light fittings for long booths
- Gun and powder centre from Gema, Wagner or Nordson integrated on request
Standards
ATEX-certified fan motor and lighting in the classified zone; CE Declaration of Conformity supplied. Built to EN 16985:2018.
Values marked "Per project" in the table are set from your part and line, and appear in the proposal.

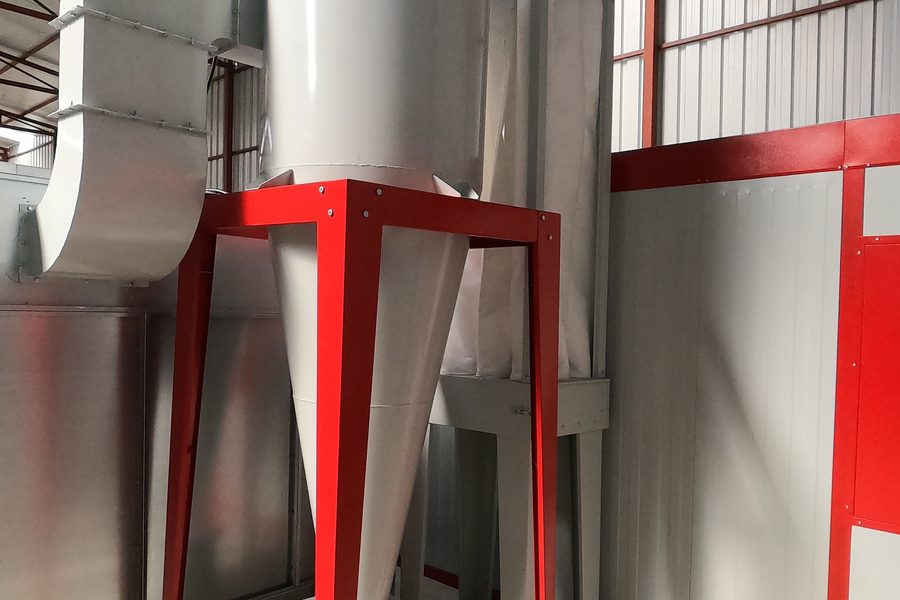

Cyclone manual booth, installed 2024
Photographed on site, before hand-over. Every project is listed with its equipment and without the customer's name. Projects
Quote for the cyclone manual powder coating booth
Send the part size, quantity and line speed; we reply within 2 working days.
