Lines running on site

Customer names are not published. Each project is described by its equipment list and photographs, so you can compare it with your own line.

Two washing stages, 10 m drying and 20 m curing on one cardan conveyor

Pretreatment2-stage spray washing line
Drying10 m spray drying oven
ApplicationCyclone-type robotic powder booth
Curing20 m straight tunnel curing oven
HandlingCardan chain conveyor line
ControlPLC-controlled electrical panel

A complete powder coating plant for steel fabrications: a two-stage spray washing line, a 10 m drying tunnel, a cyclone booth with robots, a 20 m straight curing tunnel and a cardan chain conveyor, all run from one PLC panel. The line was later dismantled and prepared for shipment to a new site, which is how the photographs were taken.

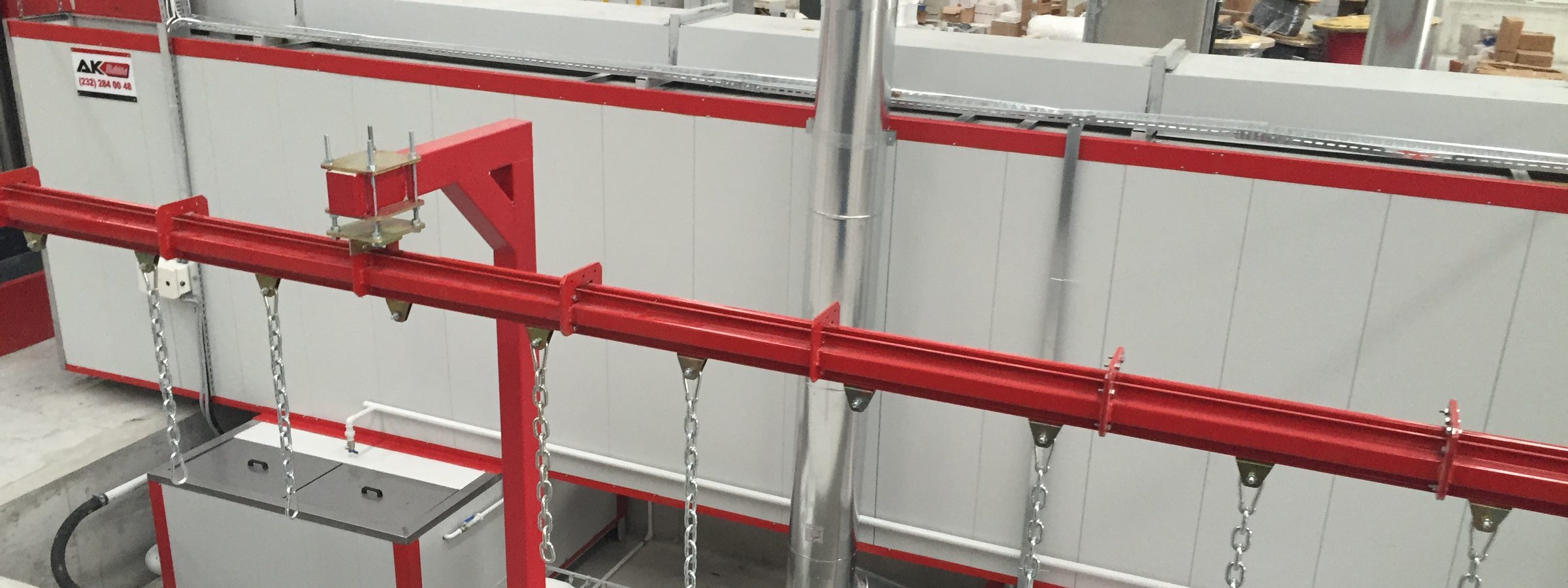

Cardan conveyor line and tunnel
Cardan conveyor line and tunnel

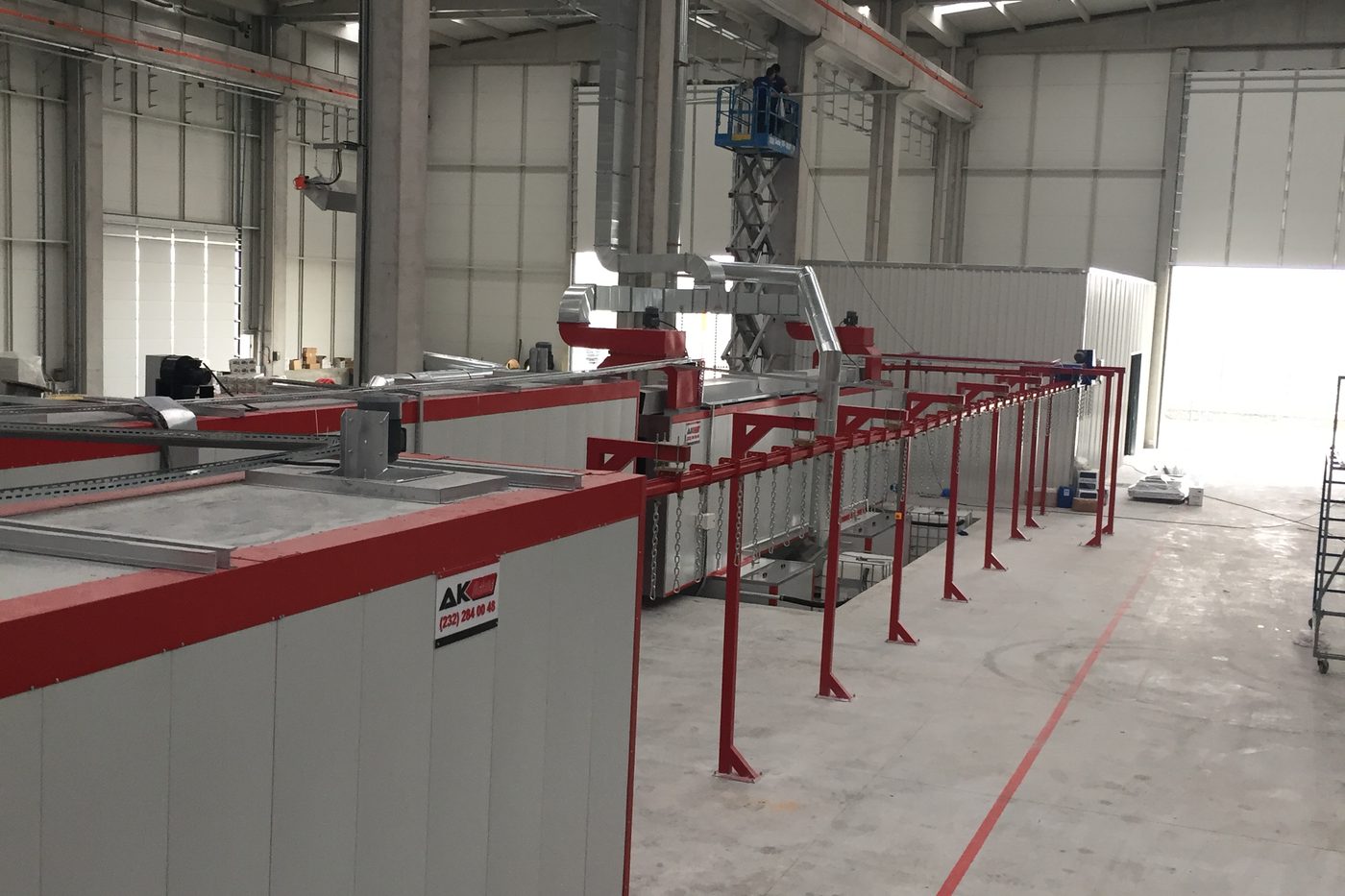

Spray washing tunnel
Spray washing tunnel

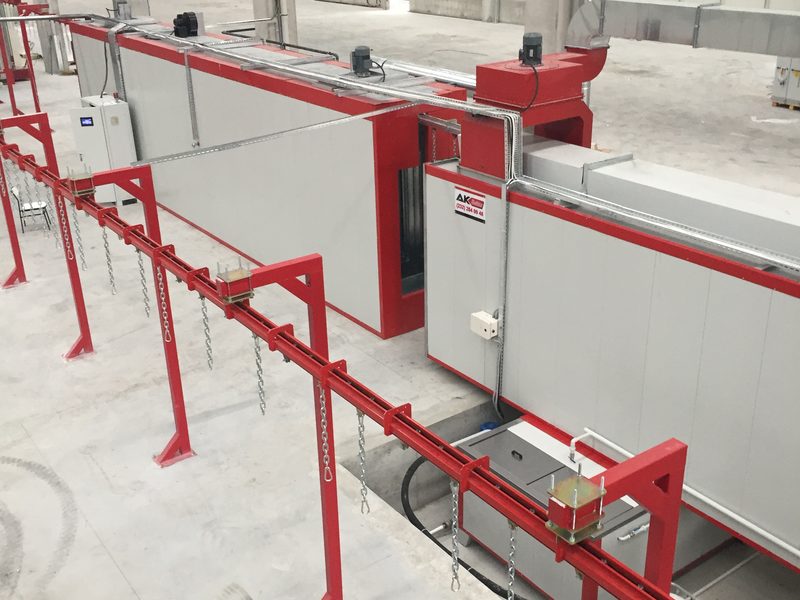

Booth entry
Booth entry

Automatic booth, tunnel oven and cardan conveyor installed in 2024

ApplicationAutomatic powder booth
CuringTunnel oven
HandlingCardan chain conveyor
ControlPLC and touch panel
Installed2024

A conveyorised powder line with an automatic booth, a tunnel curing oven with white sandwich panels and a cardan chain conveyor on a yellow rail, controlled from a PLC with a touch panel. Photographs were taken during installation, before the hall was cleared.

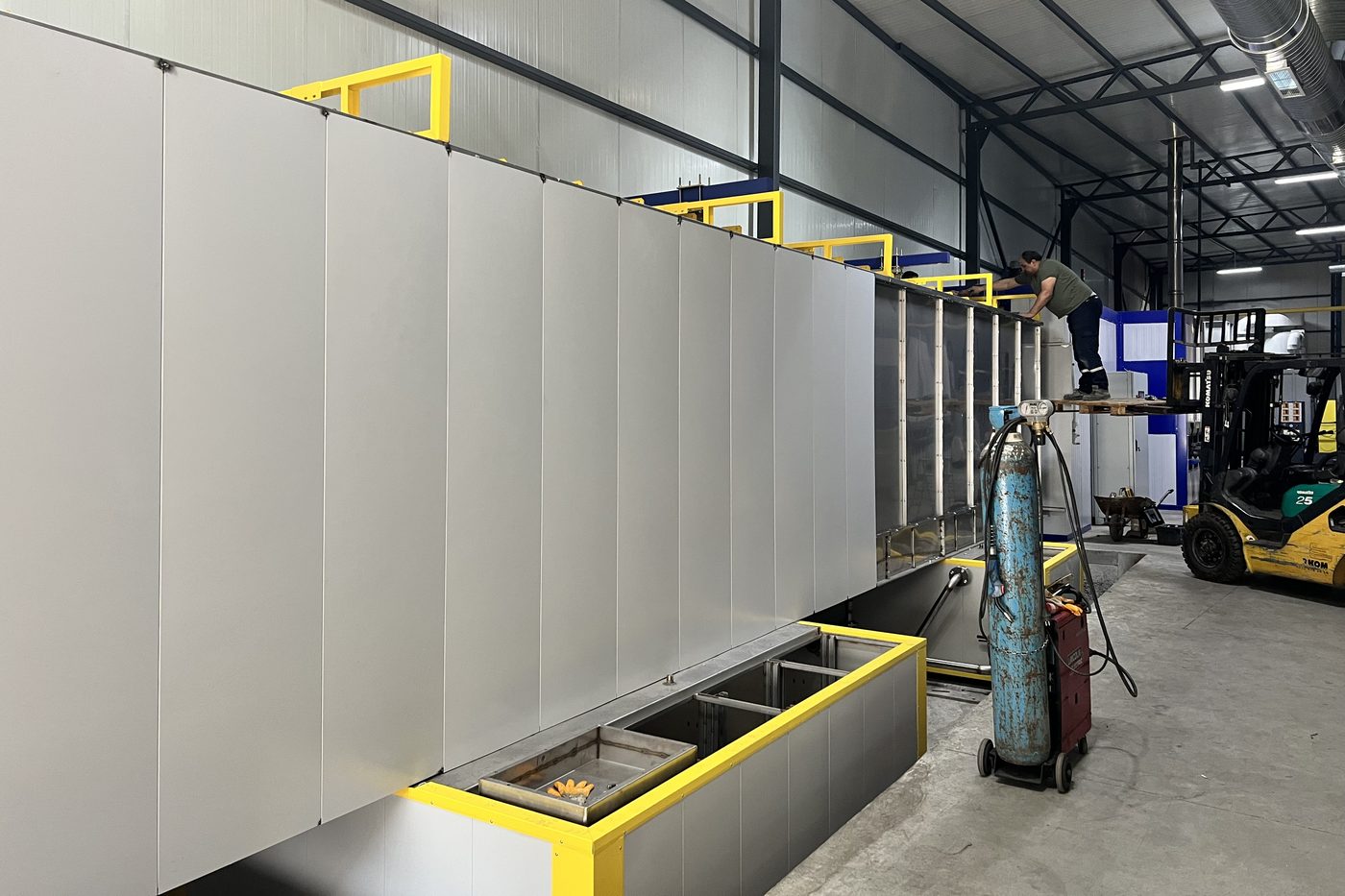

White panelled tunnel and yellow conveyor rail
White panelled tunnel and yellow conveyor rail

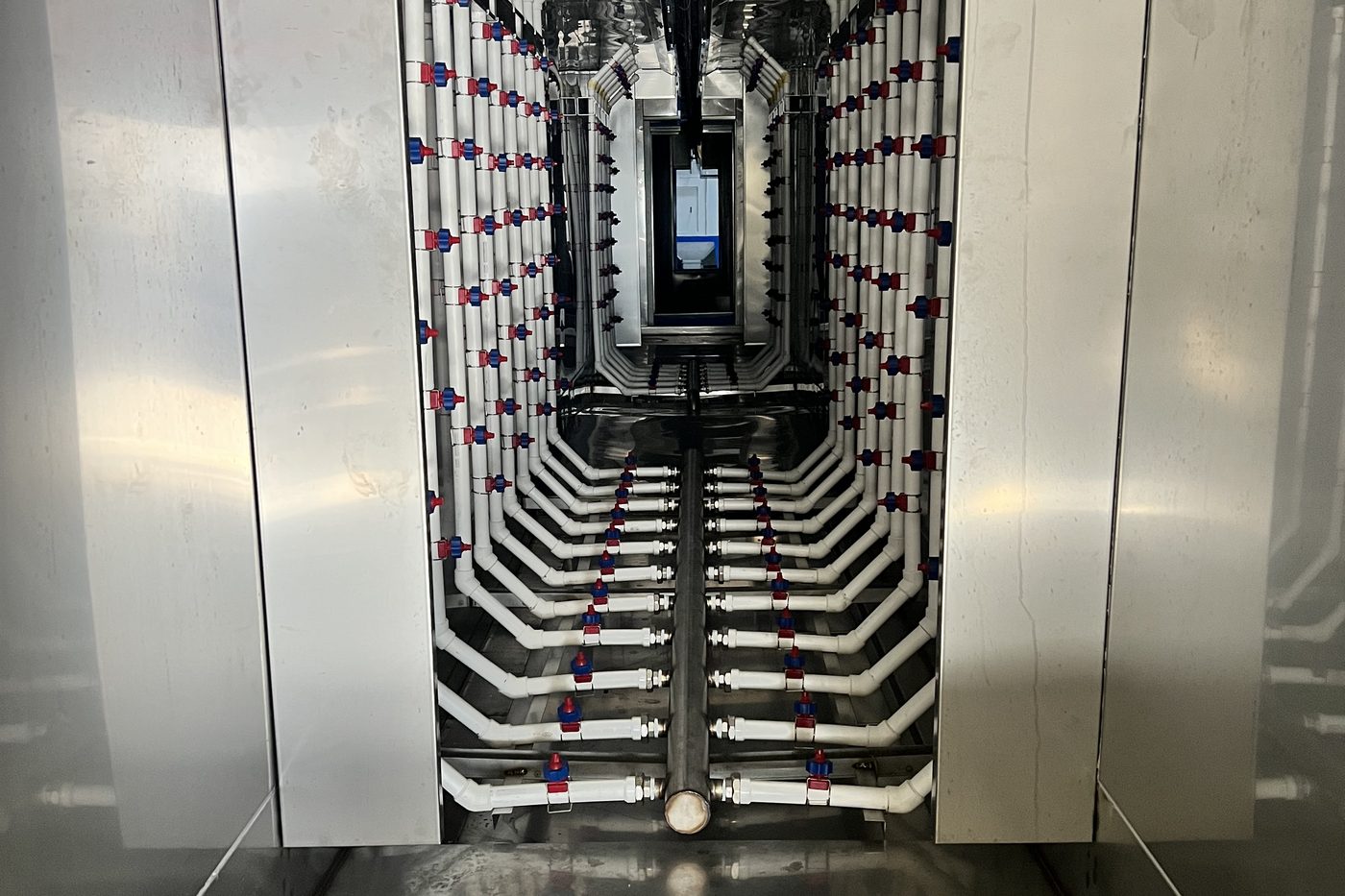

Automatic booth interior
Automatic booth interior

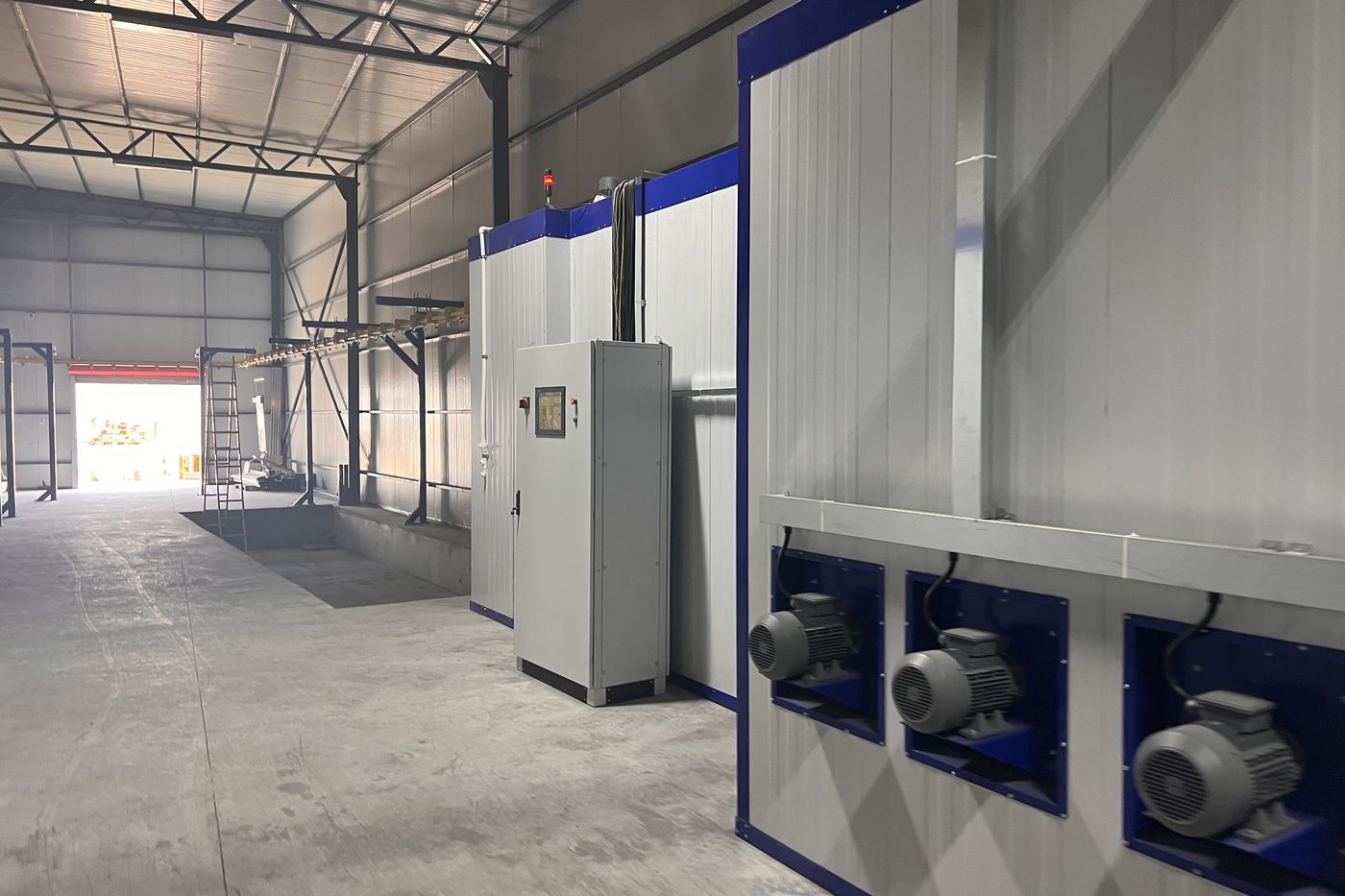

Control panel
Control panel

Paper-filter liquid paint booth with three-stage filtration, 2024

TypePaper filter
FiltrationPaper + EU-3 + metal
LightingLED
Installed2024

A dark grey panelled wet paint booth with an accordion paper filter wall, EU-3 pre-filters and metal filters, LED lighting and a rear extraction unit, installed for manual painting of fabricated parts.

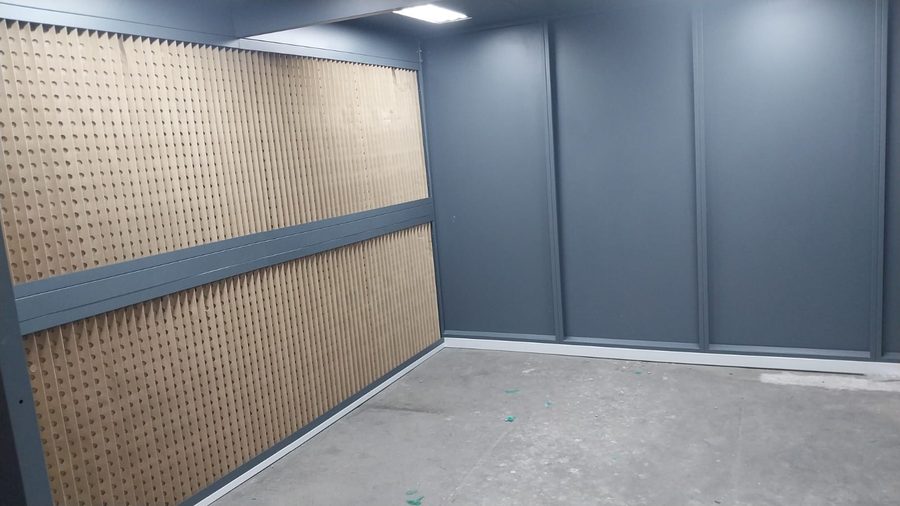

Dark grey panelled booth, paper filter wall
Dark grey panelled booth, paper filter wall

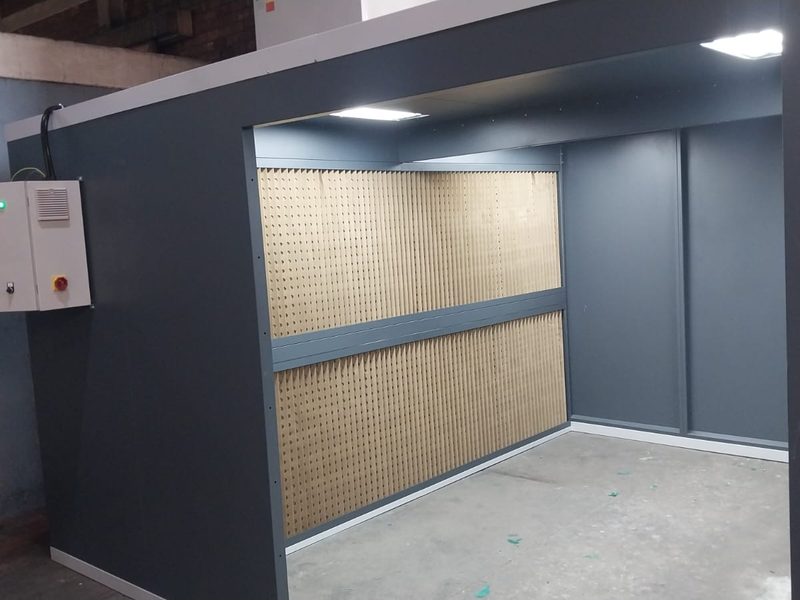

Booth interior
Booth interior

Dip pretreatment tanks with a box-type oven for batch work

PretreatmentDip tanks
CuringBox-type oven
HandlingCrane

A batch pretreatment line of dip tanks in a red steel frame, loaded by crane, with a box-type curing oven next to it for parts that do not run on a conveyor.

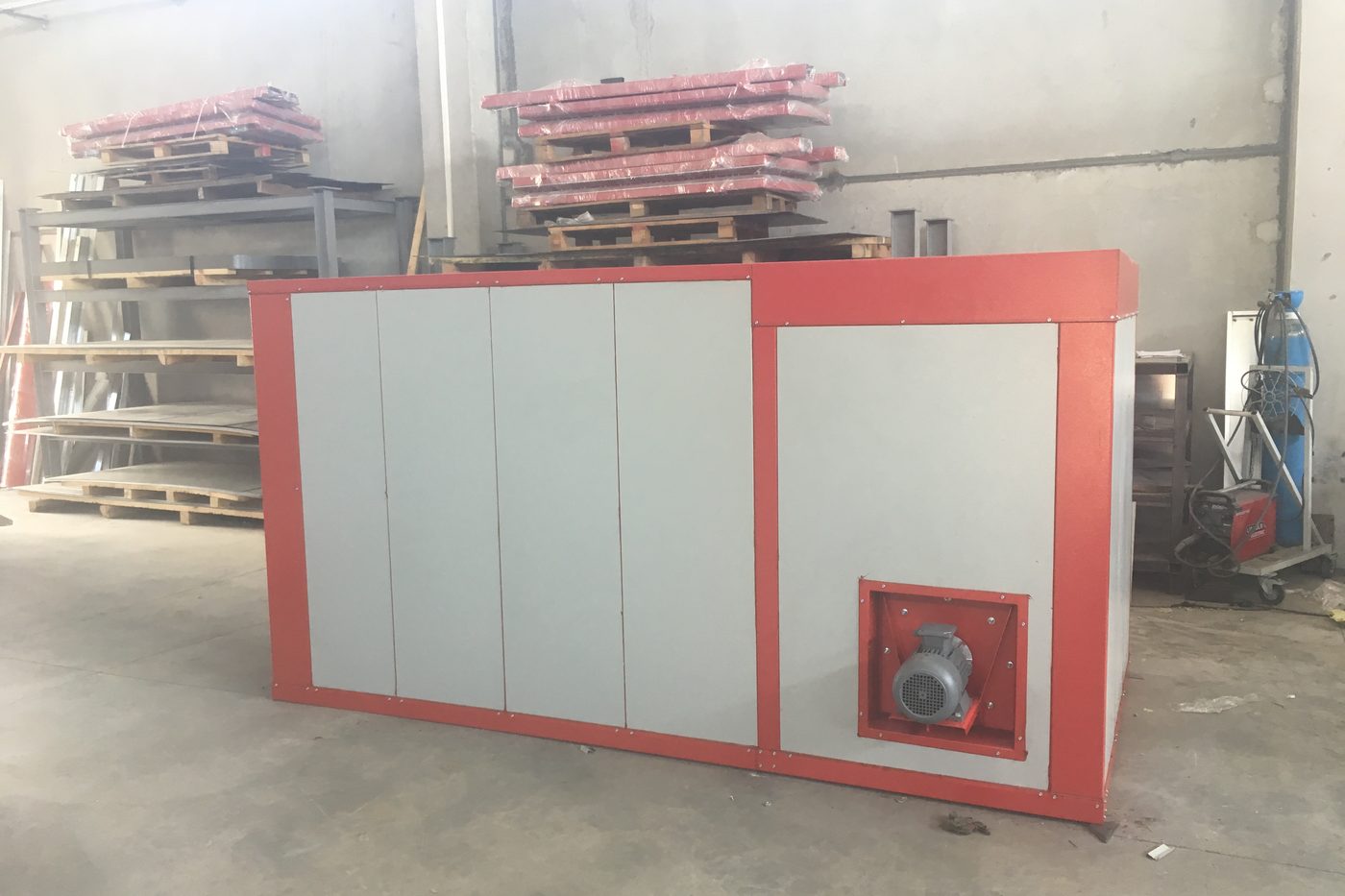

Dip tank and oven
Dip tank and oven

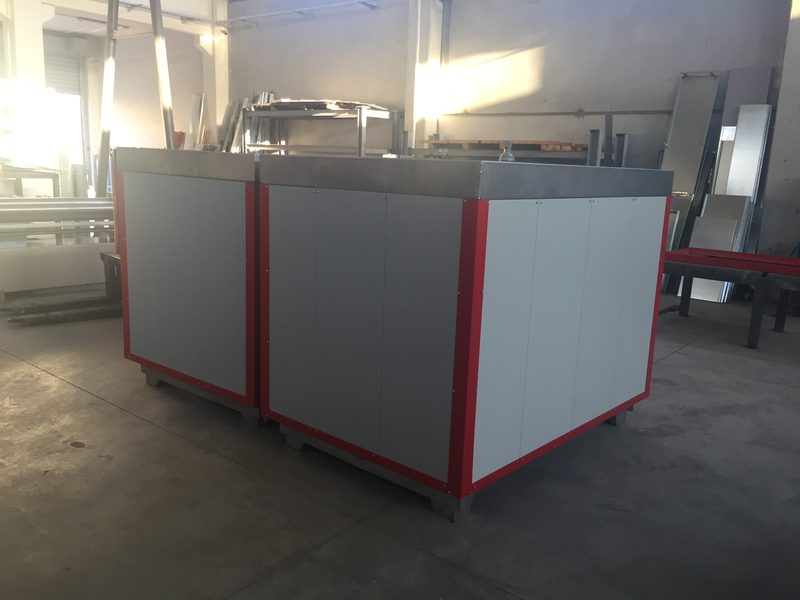

Tank line
Tank line

For a similar line

Send the largest part, the parts per hour and the hall size; we point you to the closest of these lines and size from there.
