Automatic and robotic powder coating booth
The automatic powder coating booth sits on the conveyor line and applies powder with fixed guns on reciprocators or with robots, with a cyclone recovering the overspray. Manual touch-up openings at entry and exit let an operator finish edges and cavities. Booth size, gun count and robot axes are engineered from the part geometry and the line speed.
| Application | Robotic, automatic |
|---|---|
| Recovery | Cyclone |
| Line | Conveyorised |
Technical data
The table shows the standard size. Values marked per project are set from your part and line and appear in the proposal, with the drawing for your size.
Quote for your dimensions| Application | Automatic, robot or reciprocator |
|---|---|
| Recovery | Cyclone type |
| Booth size | Per project |
| Conveyor | Cardan chain or web conveyor |
| Control | PLC panel |
How we size it
The booth length must let the part pass fully inside while the guns cover it; the gun count follows the part height and the line speed; extraction follows the openings, which are sized to the part cross-section plus clearance. The conveyor pitch sets how close parts may hang without shadowing.
What it is for
- Series production on conveyor lines
- Manual touch-up openings at entry and exit
Options
- Reciprocators or six-axis robots
- Part-detection sensors that switch guns on and off per part
- Manual pre- and post-touch-up stations
- Application equipment from Gema, Wagner or Nordson integrated on request
Standards
ATEX-certified components; CE Declaration of Conformity supplied. Built to EN 16985:2018 and EN 50177.
Values marked "Per project" in the table are set from your part and line, and appear in the proposal.

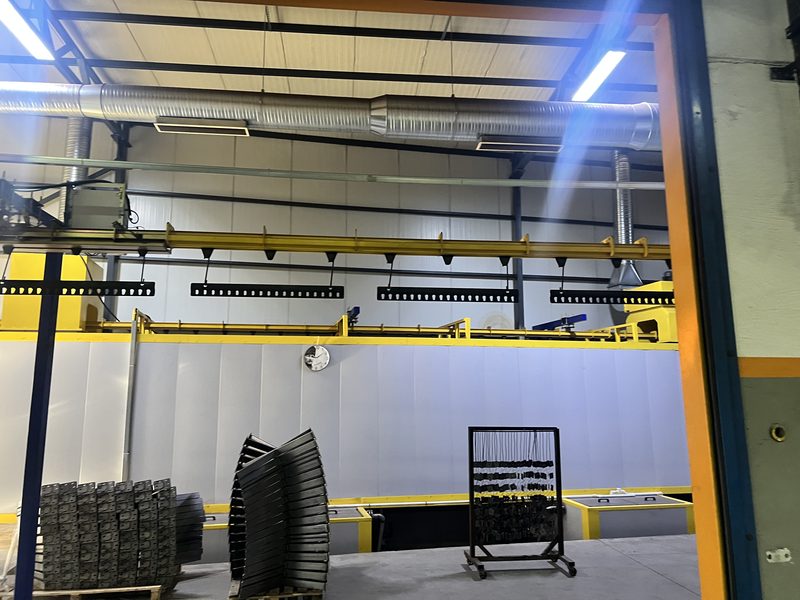

Complete line with automatic booth, installed 2024
Photographed on site, before hand-over. Every project is listed with its equipment and without the customer's name. Projects
Downloads
Quote for the automatic and robotic powder coating booth
Send the part size, quantity and line speed; we reply within 2 working days.
