Box-type powder curing oven
The box-type powder curing oven is an electric batch oven with a thermoblock heating unit at the rear, 150 mm rock-wool sandwich panels and a digital thermostat with timer. The example oven is 1.5 x 1.8 x 4 m with 60 kW of heating and a 250 °C design temperature; the timer stops the oven and sounds a horn at the end of the cycle.
| Temperature | 250 °C |
|---|---|
| Heating power | 60 kW |
| Size | 1.5 x 1.8 x 4 m |
Technical data
The table shows the standard size. Values marked per project are set from your part and line and appear in the proposal, with the drawing for your size.
Quote for your dimensions| Footprint | 1.5 m x 1.8 m |
|---|---|
| Height | 4 m |
| Supply | 3 x 380 VAC, 100 A |
| Heating | 60 kW finned resistance, thermoblock |
| Temperature | Up to 250 °C |
| Insulation | 150 mm rock wool |
| Body | 1 mm galvanized sheet, powder-coated exterior |
| Panels | Sandwich, interlocking with high-temperature silicone |

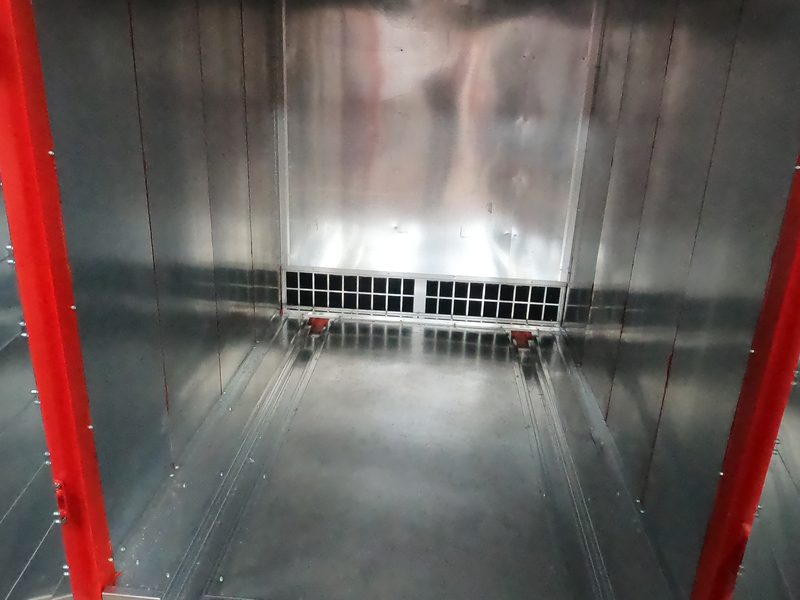

| Air distribution | Galvanized ducts, homogeneous distribution |

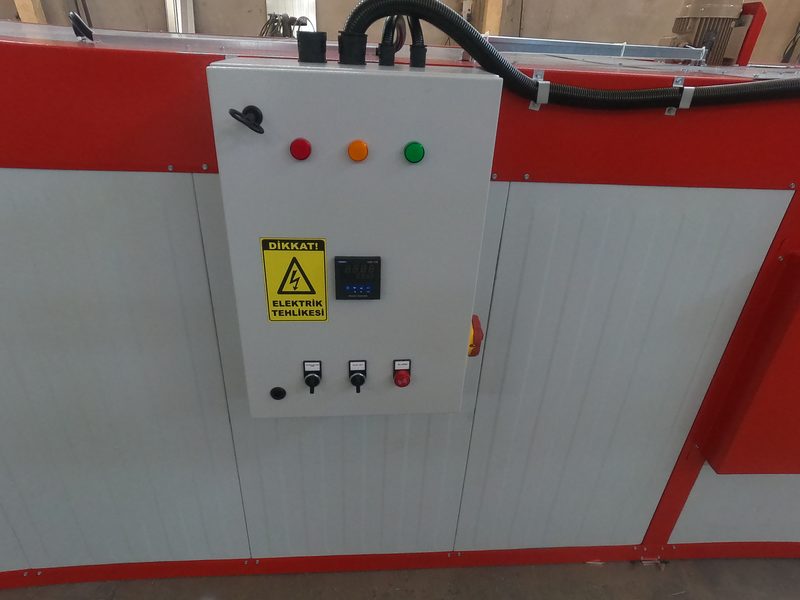

| Control | Digital thermostat, temperature range and time setting |
| End of cycle | Automatic stop, horn |
How we size it
Internal size follows the rack or trolley plus 150 mm of air space on each side; heating power follows the steel mass of a batch, the target temperature and the heat-up time you accept. The example oven brings a batch to 200 °C in about 25 minutes with 60 kW. Insulation thickness is 150 mm on every size.
What it is for
- Batch production, hanger or trolley loading
- Heating unit mounted at the rear of the oven
- Dry hot air distributed homogeneously through ducts
Options
- Single or double doors
- Trolley rails or hanger bars
- Gas-fired thermoblock instead of electric
- Recording thermostat for audit trails
Standards
CE Declaration of Conformity supplied. Built to EN 1539:2015.
Values marked "Per project" in the table are set from your part and line, and appear in the proposal.

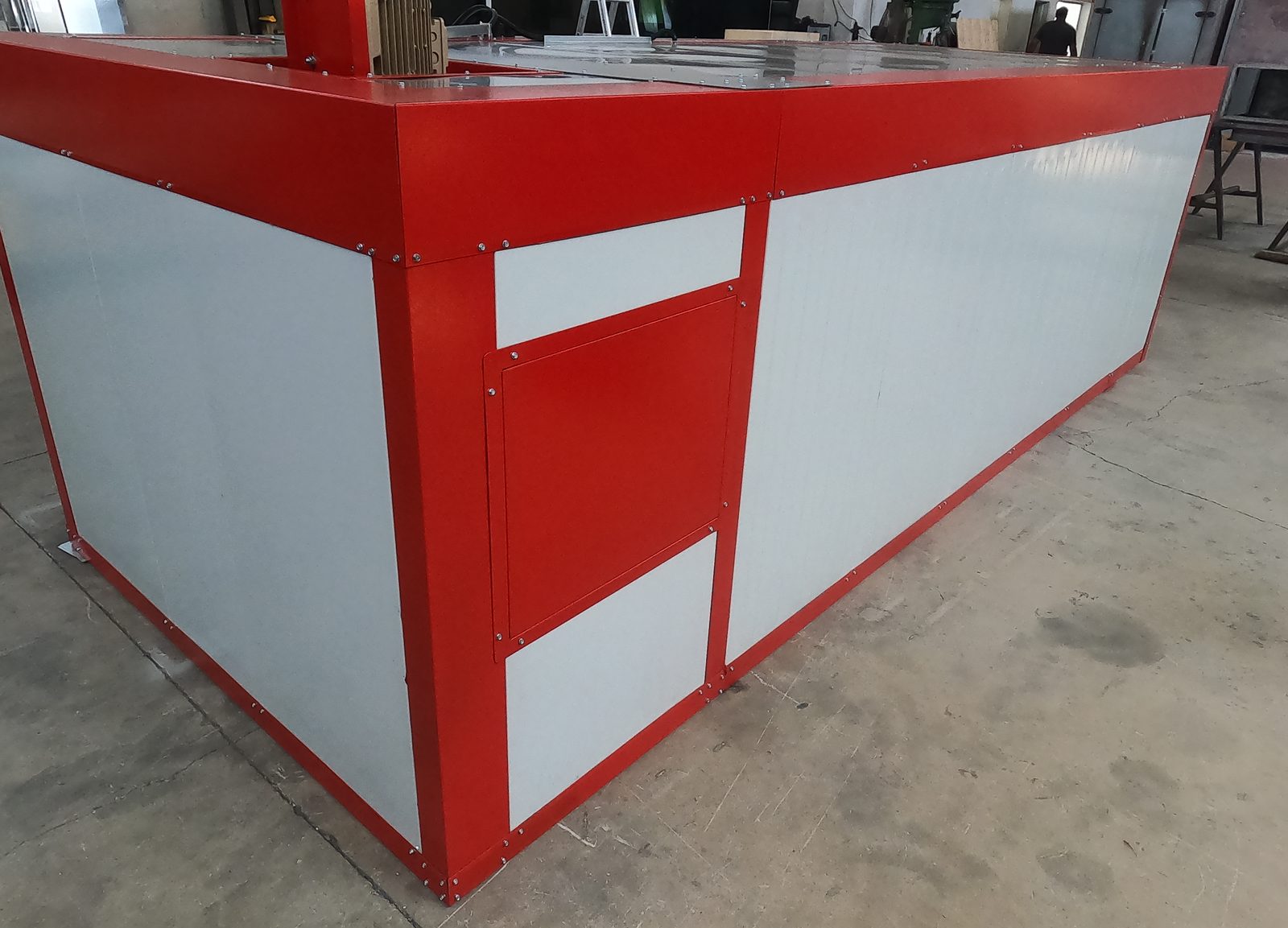

Box-type oven before delivery
Photographed on site, before hand-over. Every project is listed with its equipment and without the customer's name. Projects
Quote for the box-type powder curing oven
Send the part size, quantity and line speed; we reply within 2 working days.
