Paper-filter liquid paint booth
The paper-filter liquid paint booth is a dry booth for manual or automatic wet painting with three filtration stages: accordion paper filter, EU-3 pre-filter and metal filter. LED lighting and a 2.2 kW fan come with the standard 1,500 x 2,000 x 1,800 mm booth. Larger sizes follow the part.
| Size | 1,500 x 2,000 x 1,800 mm |
|---|---|
| Electrical load | 2.2 kW |
| Filtration | 3 stages |
Technical data
The table shows the standard size. Values marked per project are set from your part and line and appear in the proposal, with the drawing for your size.
Quote for your dimensions| Width | 1,500 mm |
|---|---|
| Height | 2,000 mm |
| Length | 1,800 mm |
| Electrical load | 2.2 kW |
| Filtration | Paper filter + EU-3 filter + metal filter |
| Lighting | LED |
| Use | Manual and automatic parts |
How we size it
Booth width follows the part width plus working room on both sides; depth follows the spray distance and the part depth; the filter wall area follows the extraction airflow so that the face velocity stays low enough for a stable spray pattern. Fan power follows airflow and filter pressure drop.
What it is for
- Painting conditions provided by filtration, extraction and lighting
- Minimum emission to the stack and the surroundings
- LED lighting with low consumption
Options
- Air make-up with heating for closed booths
- Pressurised booth with roof filters for high-gloss work
- Turntable or conveyor pass-through
Standards
ATEX-certified components in the classified zone; CE Declaration of Conformity supplied. Built to EN 16985:2018.
Values marked "Per project" in the table are set from your part and line, and appear in the proposal.

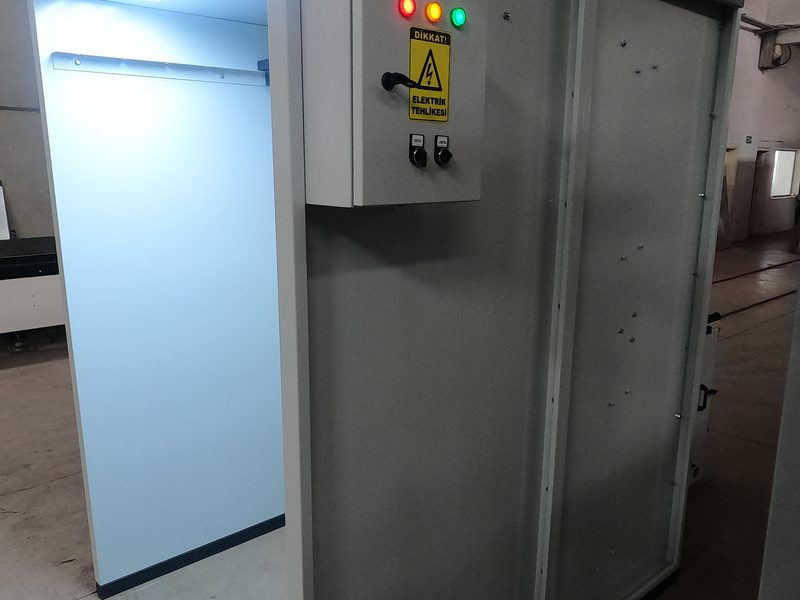

Paper-filter liquid paint booth, installed 2024
Photographed on site, before hand-over. Every project is listed with its equipment and without the customer's name. Projects
Quote for the paper-filter liquid paint booth
Send the part size, quantity and line speed; we reply within 2 working days.
